Rütten small sterile vessels

Rütten small sterile vessels

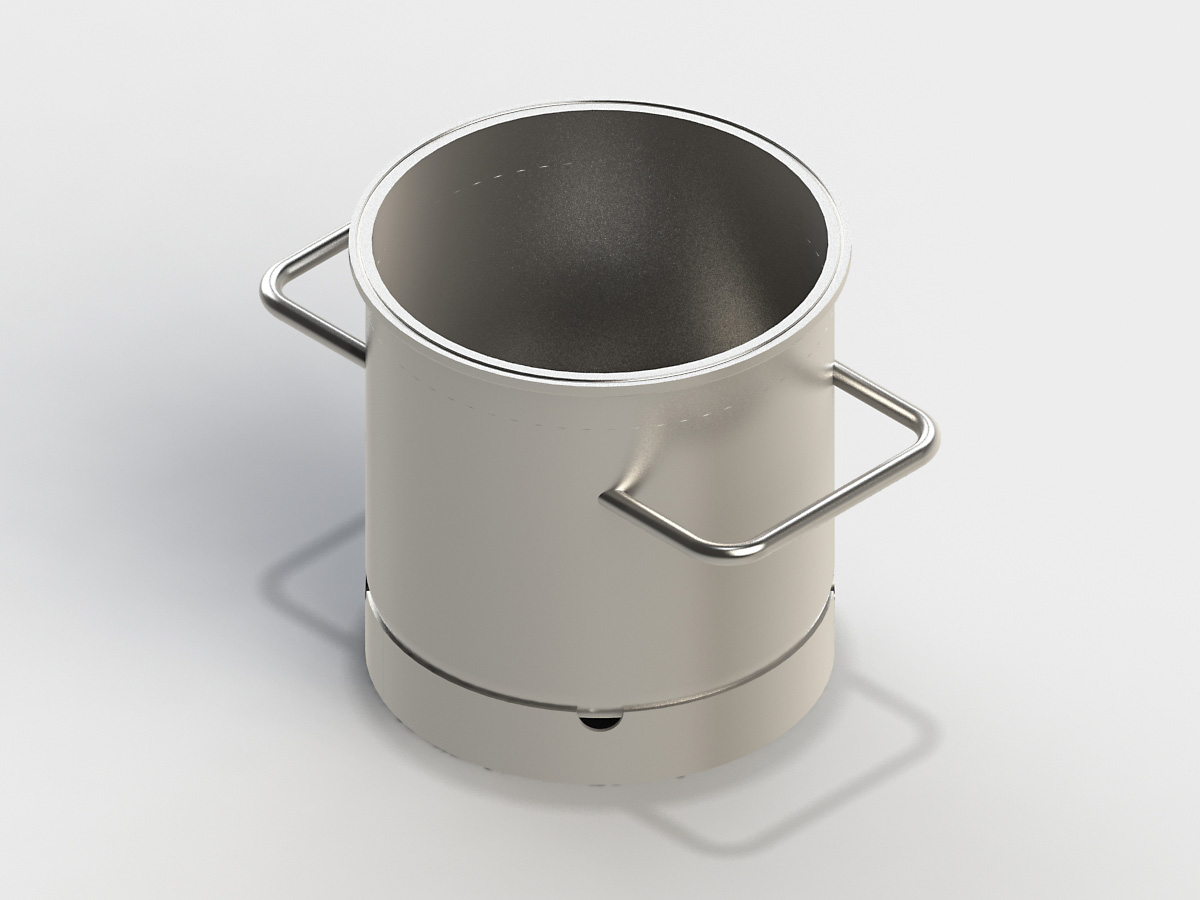

Small sterile vessel, standard, with side handles.
Rütten small sterile vessels
Small sterile vessel, standard, with head plate with central harvesting tube.
Rütten small sterile vessels
Cross section showing the inner workings of the vessel.
Storage, processing and transport of high value liquids 1 to 10 litres (0.25 to 3 US gal).
Logo SSS (Sterile Storage System)    Sterile Storage System (SSS)
Application :
Media storage Media preparation Blending Mixing Sterilization Product formulation Freezing of final product
Typical products :
Vaccines Blood products Cell cultures Injectables Media Suspensions

The vessel design achieves pressure certification with a lightweight vessel, improves ease of handling, reduces initial costs and results in lowest cost-per-use. It also ensures negligible dead volumes (50 ml) and long vessel and component lifetimes. Simple construction with head plate comprising only one O-ring seal allows quick and reliable closure with slotted nut or triclamp. All vessels are equipped with protective rim bottom, standard connections, standardised diameters and transport configurations, interchangeable components.
Rütten vessels with steam sterilizable connections are fully compliant to cGMP and FDA guidelines for integrity and cleaning : Validatable for steam sterilization of vessel, content and steam sterilized transfers. Highest cleanability, also in standard washing machines, resulting from electropolishing and low surface roughness Ra < 0.25 µm = 10 µinch. In-situ sterilisation is possible with jacketed versions.

Units Vessel 1.5 l Vessel 5 l Vessel 10 l
Total volume liter (US gal) 2.00 (0.53) 6.50 (1.72) 11.5 (3.04)
Inner diameter mm (in) 150 (5.91) 200 (7.87) 200 (7.87)
Overall height without bottom valve mm (in) 146 (5.75) 265 (10.4) 425 (16.7)
Overall height with bottom valve mm (in) 171 (6.73) 290 (11.4) 450 (17.7)
Empty weight kg (lbs) … … …
Central opening (TC ASME or DIN 11851) DN 150 200 200
Handling   2 side handles
Working temperature ° -35 / +135
Working pressure bar g -1 / +4
Test pressure bar g 7.5
Pressure code   German TÜV
Material product / non product side   DIN 1.4435 (AISI 316L) / DIN 1.4301 (AISI 304)
Surface finish product / non product side   Ra < 0.25 µ m, e-polished / Ra < 0.8 µm, e-polished
Vessel options
Vessel body No jacket Side jacket Full jacket Isolated
Vessel material Special alloys available upon request
Fittings Bottom drain valve | Membrane valve | Sampling valve | Safety valve | Bursting disc | Spray ball
Ports TC ASME | DIN 11851 | Ingold | Others available upon request | On head plate | Vessel side | Jacket
Piping Inlet tube | Dip tube | Harvesting tube
Further options touch_app Please contact us
Rütten standard documentation
Impeccable documentation constitutes an essential part of all cGMP quality assurance system. Therefore, Rütten vessels are delivered with a comprehensive documentation package in English, other languages are available upon request.

For further information, please contact us :




Benefits

  • check_circleSeamless vessel body
  • check_circleHigh end surface finish
  • check_circleCIP/SIP, autoclavable
  • check_circleFull documentation
  • check_circleCustomizing options
  • check_circleCE/TÜV approved

Components

Small sterile vessels match with the following components :
  • Rütten magnetic field monitoring system MFM-035
    MFM
    Magnetic field monitoring system MFM-035   Product info ⟩
  • Rütten mixmeter
    Mixmeter
    Instrument
  • Diaphragm pressure gauge
    Diaphragm pressure gauge
    Instrument
  • Rütten product X
    Pressure probe | Temperature probe | pH probe
    Instrument
  • Rütten valves
    Valves
    Diaphragm valve | Sample valve | Safety valve | Spray ball | Bursting disc   Product info ⟩
