Rütten Amplitude Controller AC-051

Rütten Amplitude Controller AC-051
Rütten Amplitude Controller AC-051
Developed for Rütten Vibromixers R1-R3. Adaptive stirring allowing constant process conditions.

Logo SSS (Sterile Storage System)    Sterile Storage System (SSS)

Application :
Fill and drain operations with sterile vessels blending Dispersion Homogenisation Suspension
Operative range :
Vaccines Insuline Suspensions APIs prone to foaming

In many cases, pharmaceutical end products need to be stirred continuously prior to entering the final filling stage. Given this requirement, the main challenges are :
  • Steady stirring until 'the last drop'
  • Minimized deadleg for complete product harvest
  • Prevention of vortex-caused incorporation of gaz bubbles
  • Prevention of foam formation caused by too vigorous stirring

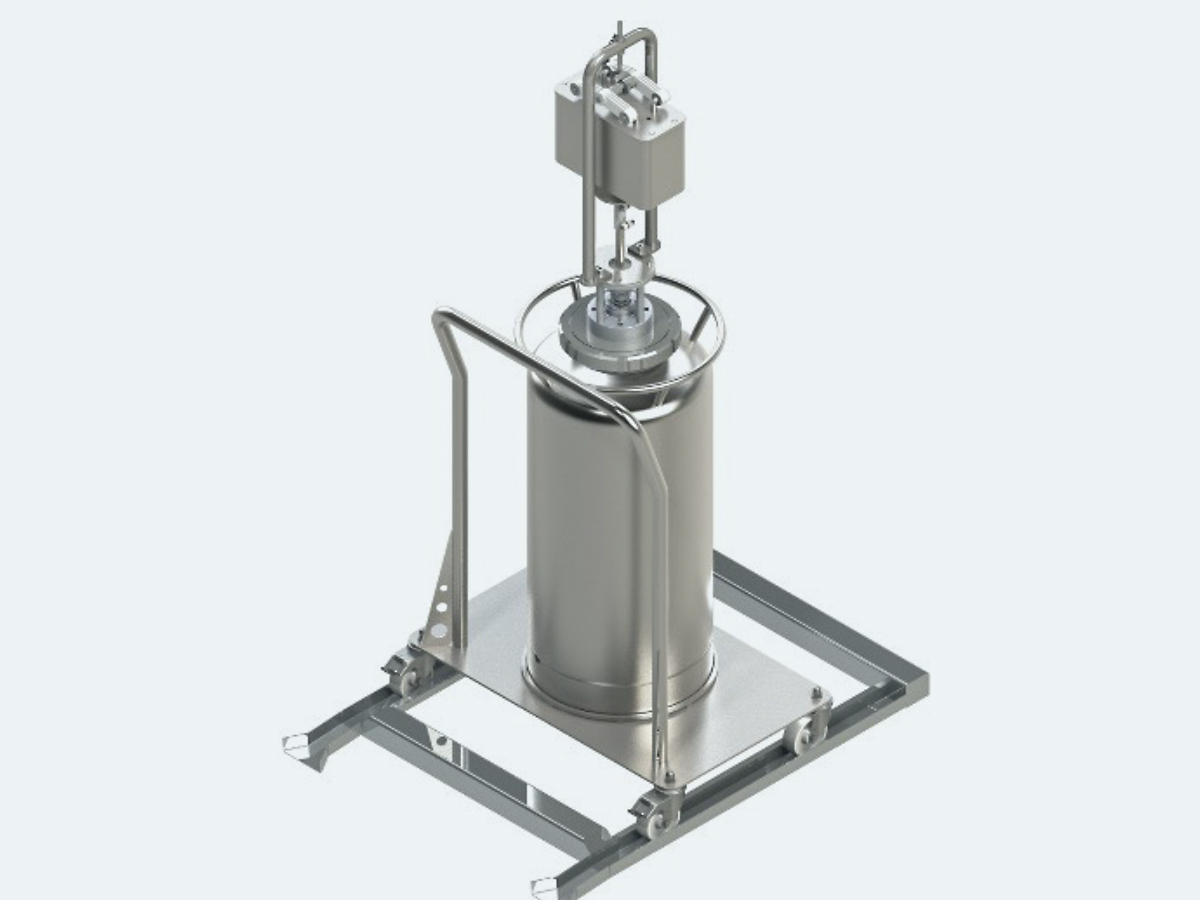

Amplitude controllers AC-051 used with Rütten Vibromixers make all this possible. AC-051 is an intelligent floor mounted weighing frame. Vessel with vibromixer on a trolley are driven into the frame. During operation, its load cells register the exact weight and adapt stirring amplitude correspondingly, during fill and drain operations. Five programmable speed ramp types are available, allowing either discreet or continuous adapation of the stirring amplitude. An unlimited number of recipes can be used. By reducing the stirring amplitude during emptying, stirring is kept up longer, allowing more of the media to be used for fill and finish.

Units Amplitude controller AC-051
Dimensions weighing frame L × W mm (in) 805 × 1067 (32 × 42)
Weight weighing frame kg (lbs) 24 (53)
Weighing range kg (lbs) 0 to 300 (0 to 660)
Accuracy kg (lbs) < 0.1 < 0.2
Material AISI 304 (DIN 1.4301)
Working environment °C, rel. hum. 0 to 40, 20-70 %
Protection class IP 55
Power supply   100-240 VAC / 50-60 Hz



Benefits

  • check_circleFoam prevention
  • check_circleEvened API concentrations
  • check_circleMinimized product loss
  • check_circleNonstop mixing during fill and drain
  • check_circleStable specific mixing energy input
  • check_circleLess product deposits or sediments

Components

Amplitude controllers AC-051 match with following components :
  • Rütten head plates
    Vibromixers
    R1 | R2 | R3   Product overview ⟩
  • Rütten sterile vessels
    Sterile vessel
    30 L | 40 L | 50 L | 80 L | 100 L | 120 L | 150 L | 200 L   Product overview ⟩
  • Rütten process controller
    Amplitude measurement and control
    Vibro process controller VPC-070
  • Rütten process documentation
    Process documentation
    Data loggers 2-channel | 4-channel | others
  • Rütten sanitary valves
    Valves
    Rütten Diaphragm valves 2-way | 3-way   Product overview ⟩
